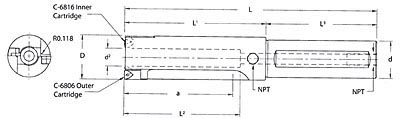

Designation Dimensions
D mm D inch L L¹ L² L³ a d d² NPT lbs

INSERT: WCMT-06T308 / WCMT-06T308-35 / WCMT-06T308-36

TWTD-060WC06

 60 2.36 11.67 7.67 6.29 4.00 5.90 2.000 .94 3/8 9.20

TWTD-065WC06

 65 2.55 12.26 8.26 6.89 4.00 6.49 2.000 1.14 3/8 10.40

TWTD-070WC06

 70 2.75 12.66 8.66 7.28 4.00 6.89 2.000 1.33 3/8 11.30

TWTD-075WC06

 75 2.95 13.25 9.25 7.87 4.00 7.48 2.000 1.53 3/8 13.20

TWTD-080WC06

 80 3.15 13.64 9.64 8.26 4.00 7.87 2.000 1.73 3/8 14.15

TWTD-085WC06

 85 3.34 16.23 10.23 8.85 6.00 8.46 2.500 1.92 1/2 20.35

TWTD-090WC06

 90 3.54 16.63 10.63 9.25 6.00 8.85 2.500 2.12 1/2 22.10

TWTD-095WC06

 95 3.74 17.22 11.22 9.84 6.00 9.44 2.500 2.32 1/2 24.05

TWTD-100WC06

 100 3.93 17.61 10.23 10.23 6.00 9.84 2.500 2.52 1/2 25.70

SPARE PARTS:   Inner Insert Cartridge: #C-6816   Peripheral Insert Cartridge: #C-6806   Insert Screw: #214.80.388   Torx Wrench: #214.80.012
Mounting Screw: #C-1396   Axial adj. Screw: #C-1405   Radial Adj. Screw: #C-1503
